15T Digital Protection Pellet Press

YP-15FS

Instrument model: YP-15FS

Pressure range: 0-15T(0-31Mpa)

Cylinder diameter: 80mm

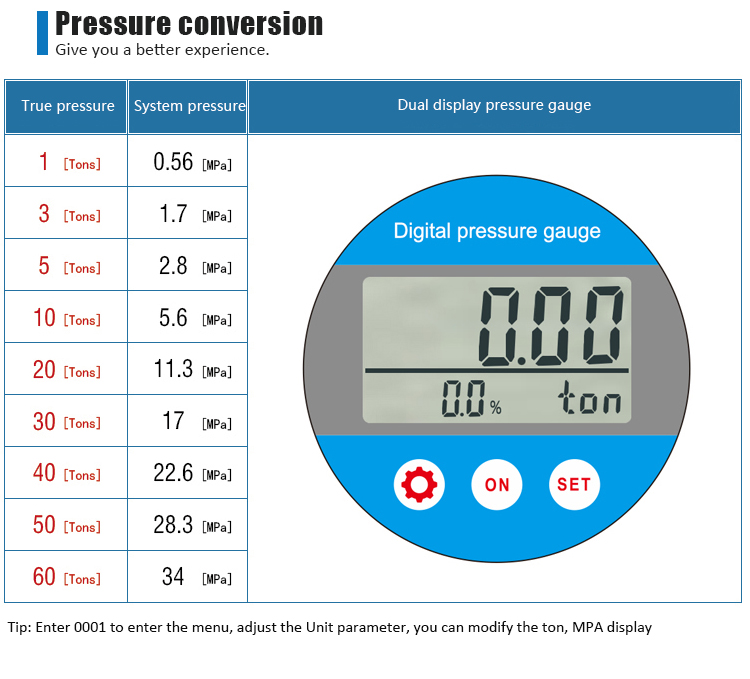

Pressure conversion: 1Mpa=0.5T

Pressure gauge: DDNT high precision digital sensor display, tonnage display (T),

                           can be switched Mpa, accuracy 0.01T

Piston stroke: 30mm

Equipment protection: side opening 5mm plexiglass protective door,

                                     translation latch latch safe and convenient

Pressure stability: <1Mpa/10min

Table diameter: Φ90mm

Number of columns: 4

Effective space: 80x80x150mm

Dimensions: 260x175x400mm

Equipment weight: 43Kg

Overall structure: manual hydraulic system, forging process, integrated structure

                             (equipped with No. 68 wear-resistant hydraulic oil)

Configuration description: All kinds of round, square, shaped, battery molds can

                                           be selected within the pressure range
